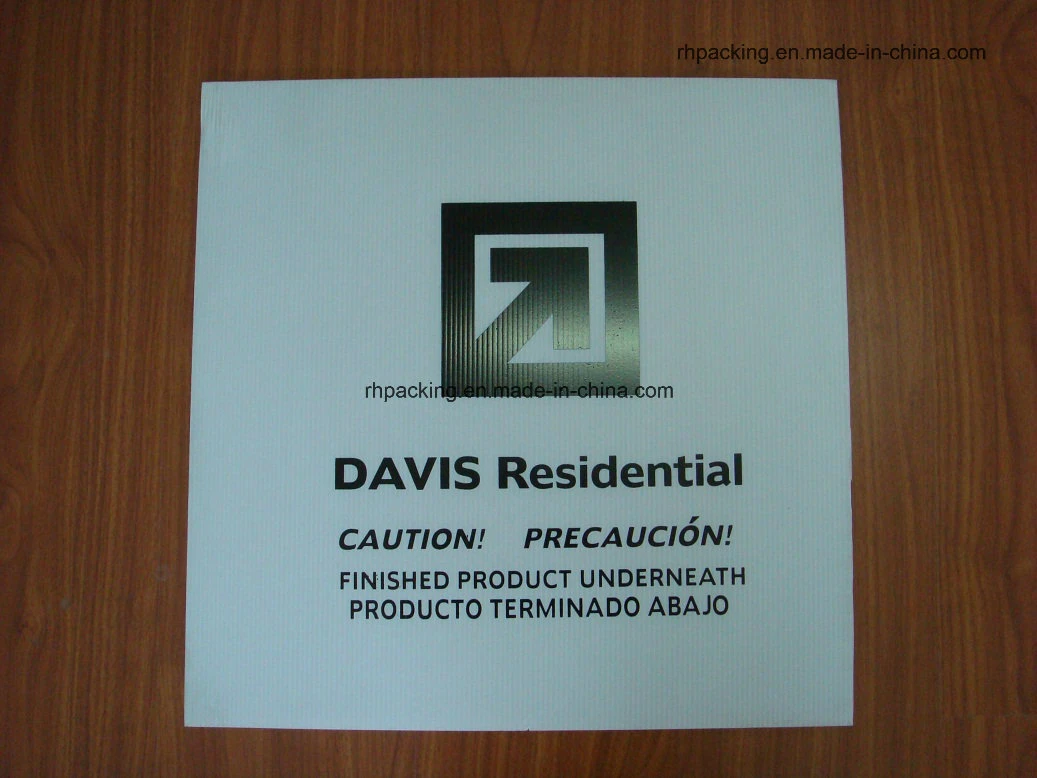

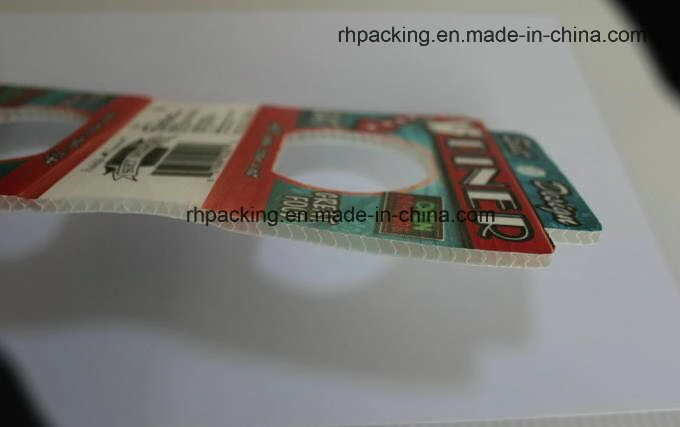

Coflute Coroplast Correx Corrugated Plastic Sign Board / Plastic Warning Sign / Prohibition Sign

Waterproof / Reusable PP Corrugated Plastic Sheet / PP Coroplast Sheet / PP Hollow SheetSpecificationsPP Hollow Sheet Width:1220mm,2050mm Length:limitless Thickness:2 ~10mm Colors:as per customer\'s requestIntroduction:Our sign PP hollow sheets are light, high strength, anticorrosive, waterproof and moisture

Featured Products

Waterproof / Reusable PP Corrugated Plastic Sheet / PP Coroplast Sheet / PP Hollow Sheet
Specifications

PP Hollow Sheet
Width:1220mm,2050mm
Length:limitless
Thickness:2 ~10mm
Colors:as per customer's request

Introduction:

Our sign PP hollow sheets are light, high strength, anticorrosive, waterproof and moisture proof, etc. They can be used to display, screen printing, packaging. S-corrugated board is the one of Oursign's special products. The package box made of this media is with high intensity and long durability. And this media can be reused and easily be cleaned. So it can also be made to the products with the function of electric conduction, and made to the products which can anti static and anti UV. It's widely used in the field of advertisement, package and electronics.buhui

Features:

1. Light weight.
2. High strength.
3. Anti-corrosive.
4. Water proof and moisture proof.
5. Weather resistant (UV, rain, typhoon and frost).
6. Anti-static.

Application:

1. Billboard .
2. screen printing.
3. Exhibition booth decoration.
4. Displays (indoor and outdoor).
5. packing box.
6. Insulator, cushion material, tray.

Specification:



Name

Width(mm) * Length(mm)

Thickness±0.1(mm)

Standard Weight (gsm)

Weight Range (gsm)

PP Hollow Sheet

1220*2440             2050*3050

2

450

300~600

3

500

360~800

4

700

550~1000

5

900

700~1200

6

1200

900~1600

1220*2440

7

1400

1200~1800

8

1600

1600~2000

9

1800

1700~2200

10

2000

1800~2200

  Main tech parameter :

Specifications:



Item

Unit

Thickness & Physical Performance Parameter

2mm

3mm

4mm

5mm

6mm

7mm

8mm

9mm

10mm

Raw Material



PP

PP

PP

PP

PP

PP

PP

PP

PP

Length

mm

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Custom-

ization

Max. Width

mm

1700

1700

1700

1700

1700

1700

1700

1700

1700

Gram per

Square Meter

GSM

400

450

650

850

1000

1400

1600

1800

2000

Tension

Fracture

N

≥200

≥250

≥300

≥350

≥400

≥450

≥500

≥550

≥600

Elongation

at Break

%

≥50

≥50

≥50

≥50

≥50

≥50

≥50

≥50

≥50

Horizontal

Compression

Ratio

N

≥700

≥900

≥1000

≥2500

≥3000

≥3500

≥4000

≥4500

≥5000

Vertical

Compression

Ratio

N

≥90

≥150

≥350

≥600

≥600

≥700

≥750

≥800

≥1000

Tearing Force

N

≥50

≥60

≥70

≥80

≥100

≥150

≥160

≥180

≥210
