PE PP PVC Corrugated Pipe Production Line Features of product:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
PE PP PVC Corrugated Pipe Production Line Process line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
PE PP PVC Corrugated Pipe Production Line Technical Parameters:
Machine picture:
Die head and mould picture:
Sample picture:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
PE PP PVC Corrugated Pipe Production Line Process line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
PE PP PVC Corrugated Pipe Production Line Technical Parameters:
| Model | Screw diameter | L/D | Pipe range | Capacity (kg/h) | Main motor Power (km) | Total power | Line length |
| BW-PE50 | 50mm | 30:1 | 8-50 | 50 | 22 | 50 | 12 |
| BW-PE75 | 65mm | 30:1 | 16-75 | 100 | 37 | 80 | 16 |

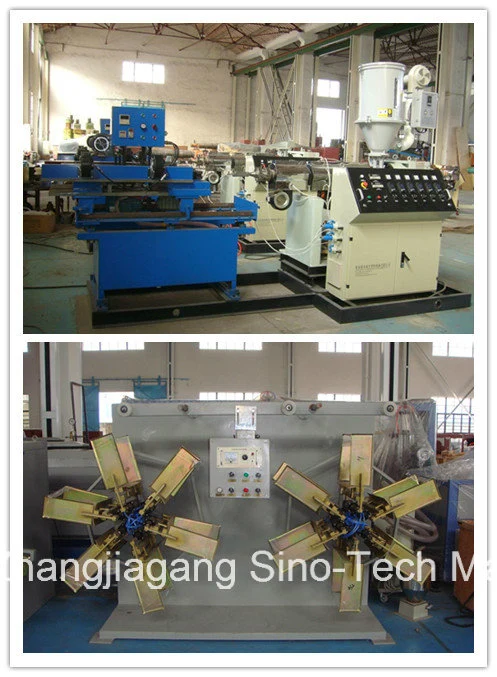

Machine picture:

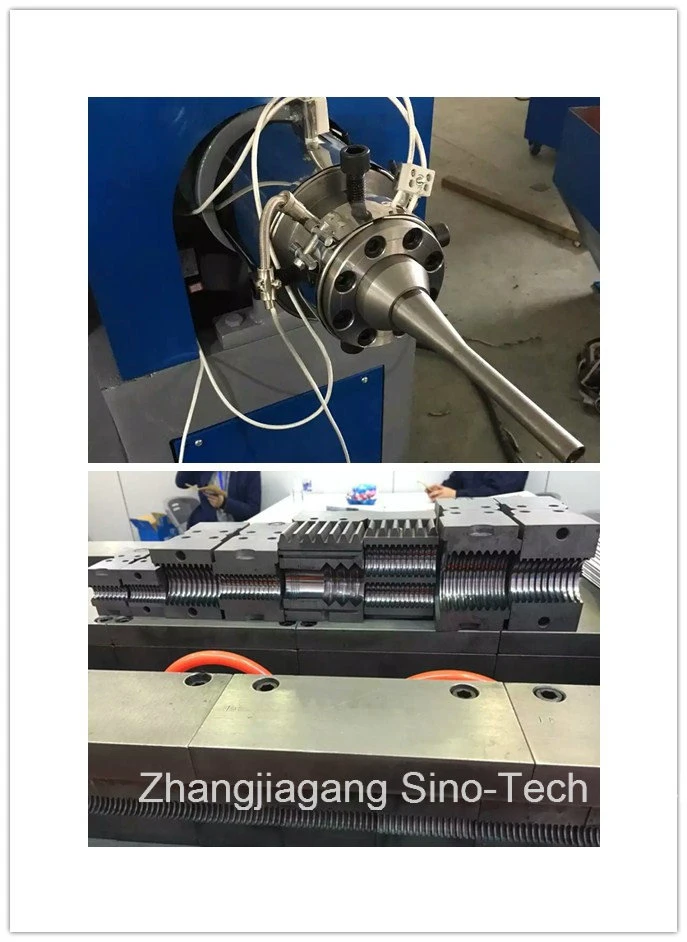

Die head and mould picture:

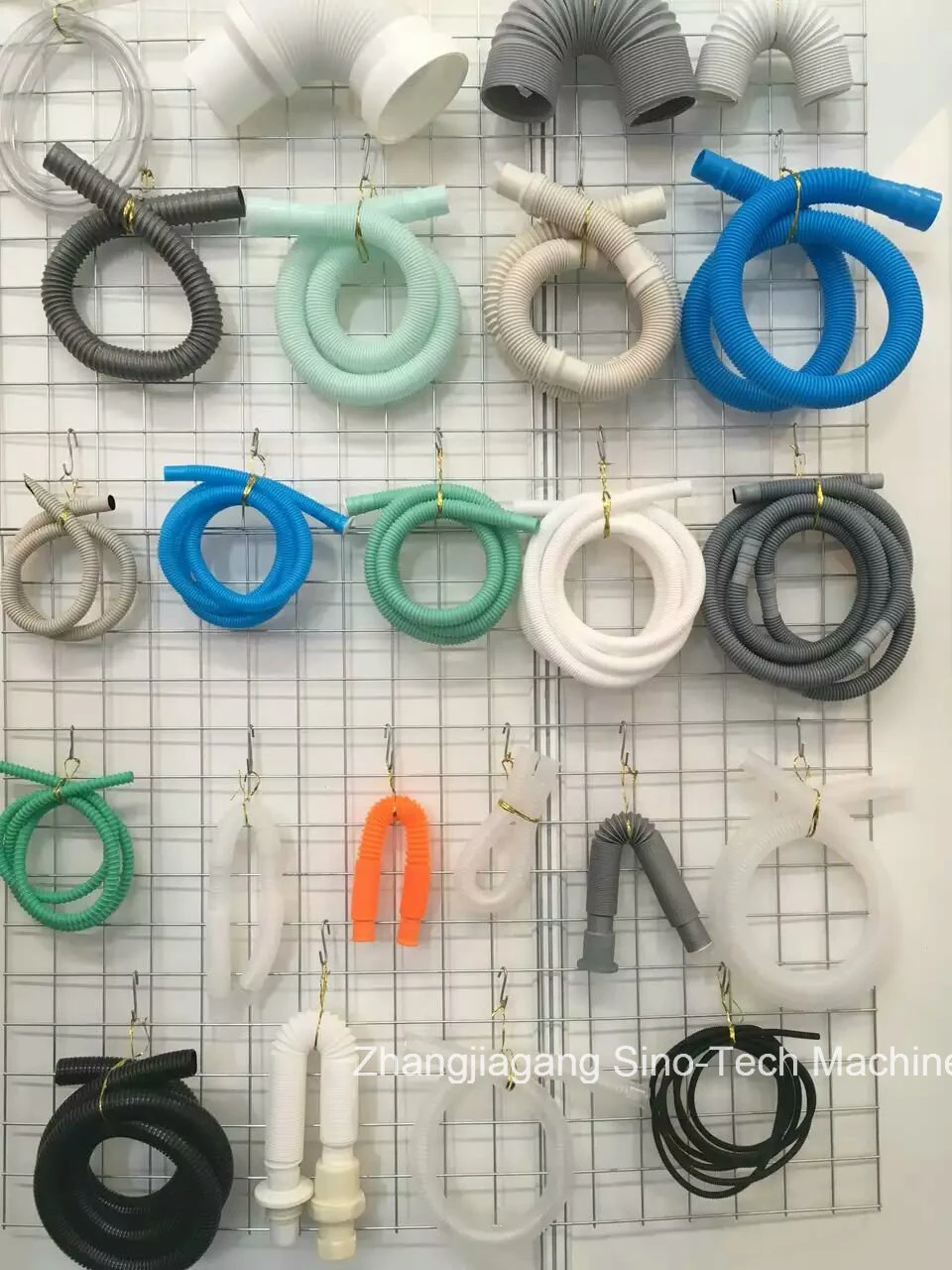

Sample picture:
