Rainwater Drainage Pipe Plastic Extruder, Double Wall Corrugated Pipe Production Line

Introduction:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc

Features:

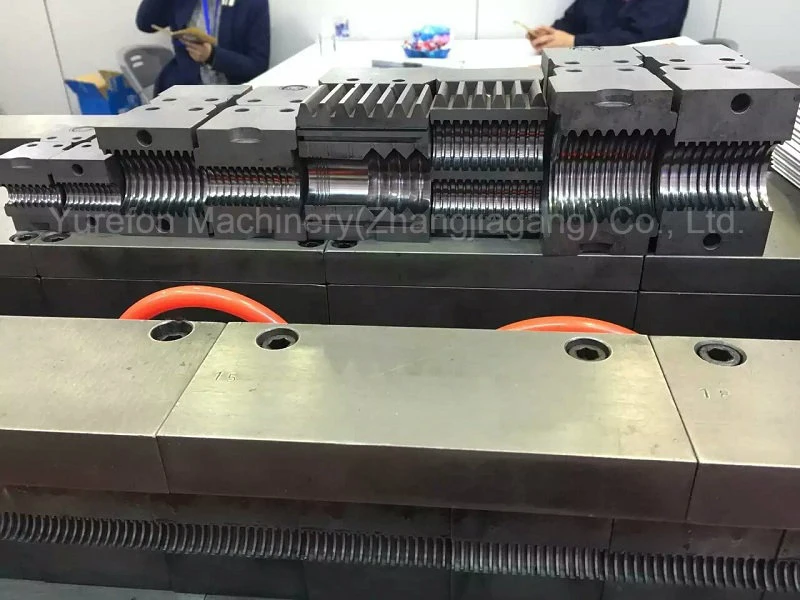

Closed design Water cooling High outputs Mould blocks made of steel Easy and quick mould block change Suitable for the use of single, duo and triple mould blocks Precise lateral and height adjustment of corrugator Clearance adjustment Patented automatic clearance adjustment available Central lubrication with monitoring system Multi zone vacuum technology available Push off cylinder operated by air available PLC control system Touch screen technology Electrical control for synchronisation with extruder Maintenance-free servo motor Telediagnostic service via internet available



Production Flow:

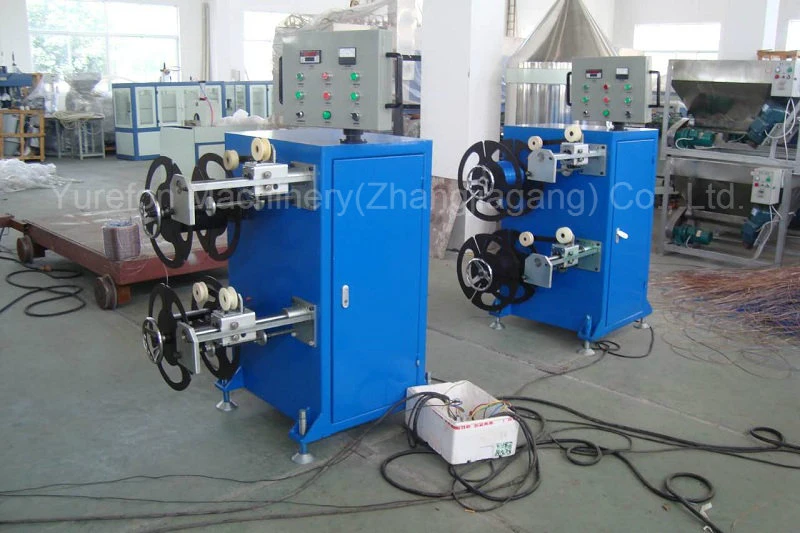

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

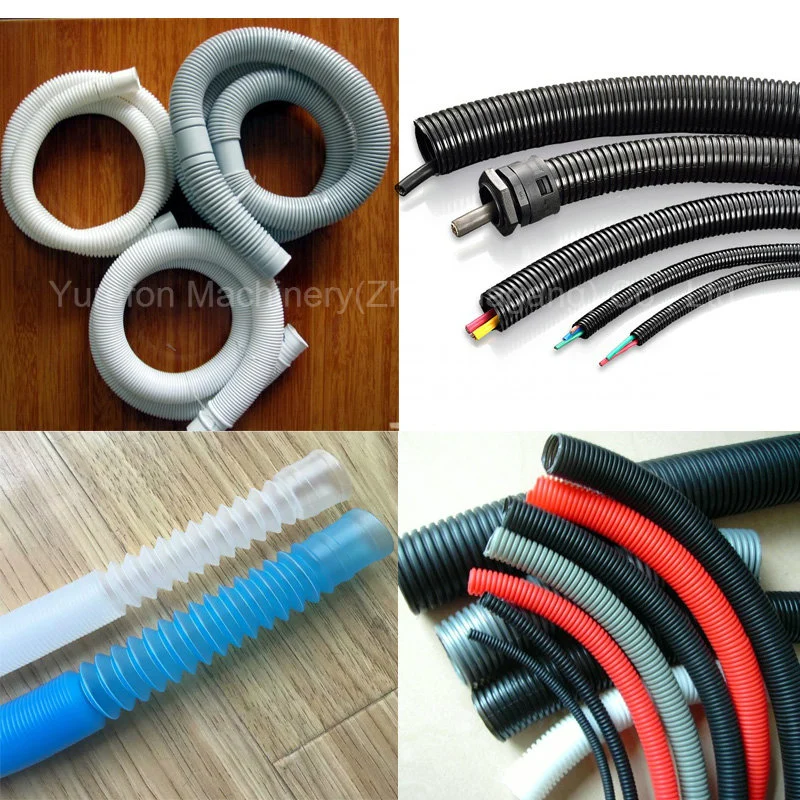

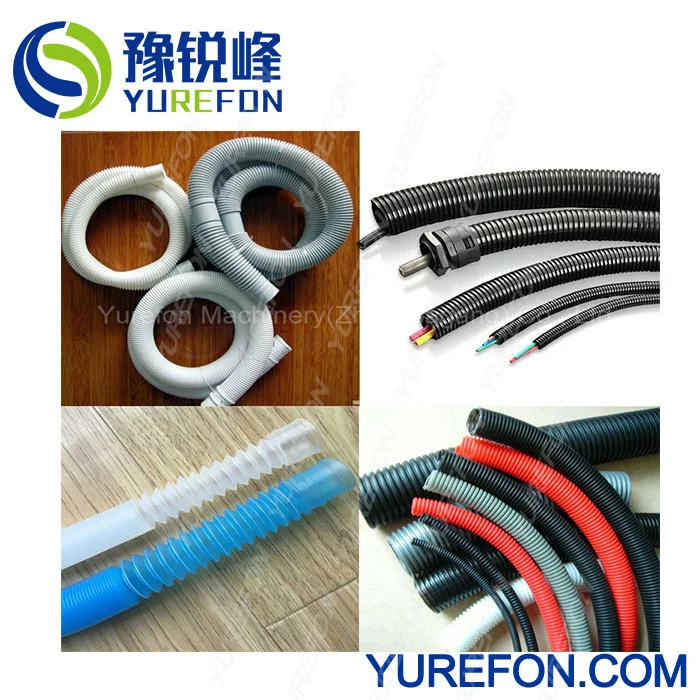

Pipe Appilication:
Protection pipes for TV, glassfiber, telephone, electricity, IT and computer, PEX, Alu-PEX, cable Automotive industry Airplane industry, machine and ship building Healthcare Vacuum cleaners Washing machines Dishwashers
Technical Parameters:


MaterialMachine modelExtruder Pipe diameter(mm)Production speed(m/min)
PE/PPSNDPG-25SJ45/30φ11mm-φ25mm20
SNDPG-63SJ55/30Φ25mm-φ63mm10
SNDPG-90SJ65/30Φ50mm-φ90mm5
PVCSNDPG-63SJZ51/105Φ25mm-φ63mm5
SNDPG-110SJZ65/132Φ50mm-φ110mm3

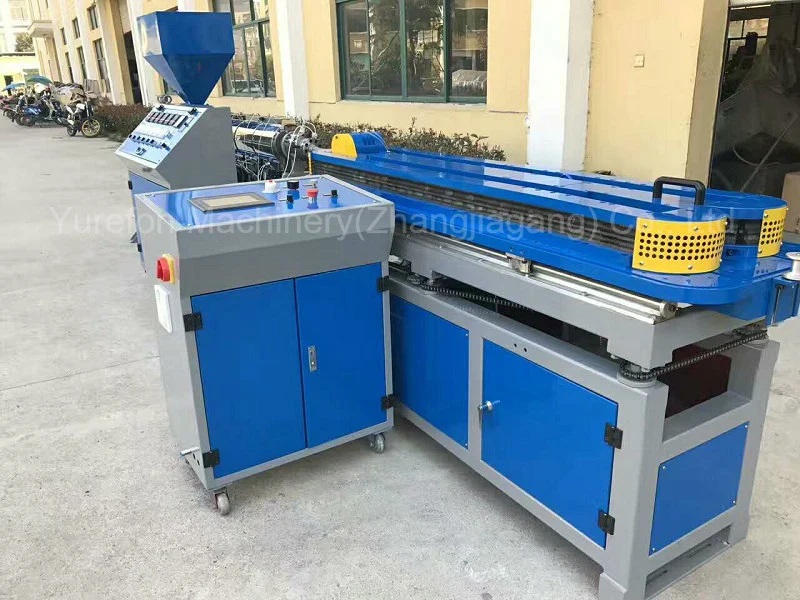

Machine Pictures:
Rainwater Drainage Pipe Plastic Extruder, Double Wall Corrugated Pipe Production Line
Rainwater Drainage Pipe Plastic Extruder, Double Wall Corrugated Pipe Production Line
Rainwater Drainage Pipe Plastic Extruder, Double Wall Corrugated Pipe Production Line
Rainwater Drainage Pipe Plastic Extruder, Double Wall Corrugated Pipe Production Line
