DWC Pipe Extrusion Line / HDPE Double Wall Corrugated Pipe Production Line
Double-wall corrugated pipe production line adopts the direct extrusion molding process, high efficiency production , reliable quality. Due to its excellent wall structure design, the pipe have lightest weight , and the pipe cost greatly reduced, a large number alternatives of traditional concrete pipe and cast iron pipe.
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line, PVC double-wall corrugated pipe production line.
Equipment operation is stable, automatic production, saving labor, efficient extrusion.
Extruder:
1, double extruder, advanced screw design, assure the high speed extrusion of double-wall corrugated pipe;
2, a temperature control system, reliable guarantee to produce high quality PVC double-wall corrugated pipe and HDPE double-wall corrugated pipe.

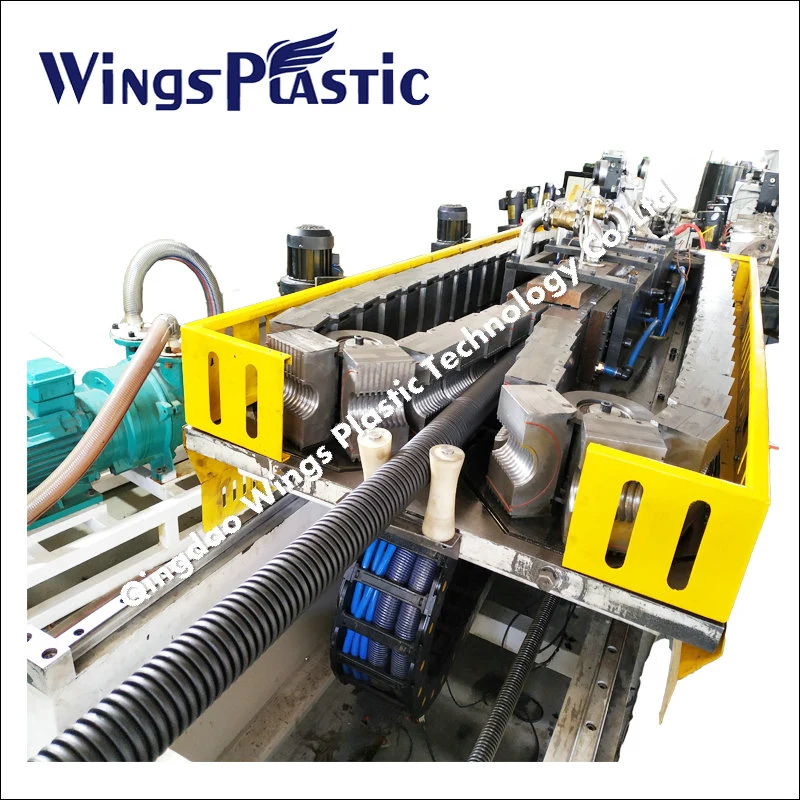

Molding machine:
1, horizontal molding machine, high-speed operation;
2, water-cooled aluminum mould, running fast and good heat dissipation;
3, for PVC, HDPE double-wall corrugated pipe, all can use online flaring.
Spray cooling equipment:
1, equipment center height can be adjusted;
2, water tank can be effective and efficient cooling with the length of 6 m to 8 m.
Traction device:
1, pressure control system can adjust the traction;
2, corrosion resistant rubber piece to ensure the quality of the tube.
Cutting machine
1, adjustment according to the size ;
2, low noise, strong drain system.
![16-63mm PP PE PVC Single Double Wall Corrugated Plastic Pipe Extruder Making Machine Line](https://img2.grofrom.com/aibate/56b55fa06a97c44bd6be68a2e37bbce2.webp)
![16-63mm PP PE PVC Single Double Wall Corrugated Plastic Pipe Extruder Making Machine Line](https://img2.grofrom.com/aibate/98d587496db2aaf035cf046e77c6e2f4.webp)
![16-63mm PP PE PVC Single Double Wall Corrugated Plastic Pipe Extruder Making Machine Line](https://img2.grofrom.com/aibate/e5d419931bc162bcc0479a2d6c0863ea.webp)
![16-63mm PP PE PVC Single Double Wall Corrugated Plastic Pipe Extruder Making Machine Line](https://img2.grofrom.com/aibate/f0d4c8e68ae0b633a571b6a468452e0e.webp)
Double-wall corrugated pipe production line adopts the direct extrusion molding process, high efficiency production , reliable quality. Due to its excellent wall structure design, the pipe have lightest weight , and the pipe cost greatly reduced, a large number alternatives of traditional concrete pipe and cast iron pipe.
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line, PVC double-wall corrugated pipe production line.
Equipment operation is stable, automatic production, saving labor, efficient extrusion.
Extruder:
1, double extruder, advanced screw design, assure the high speed extrusion of double-wall corrugated pipe;
2, a temperature control system, reliable guarantee to produce high quality PVC double-wall corrugated pipe and HDPE double-wall corrugated pipe.
Molding machine:
1, horizontal molding machine, high-speed operation;
2, water-cooled aluminum mould, running fast and good heat dissipation;
3, for PVC, HDPE double-wall corrugated pipe, all can use online flaring.
Spray cooling equipment:
1, equipment center height can be adjusted;
2, water tank can be effective and efficient cooling with the length of 6 m to 8 m.
Traction device:
1, pressure control system can adjust the traction;
2, corrosion resistant rubber piece to ensure the quality of the tube.
Cutting machine
1, adjustment according to the size ;
2, low noise, strong drain system.
Item | Details |
Capacity | 200kg/h |
Forming Way | Vacuum System |
Control Way | Electric control or computer control |
Line Speed | 3-6m/min |
Diameters | ID 32mm to ID 110mm |
